Kìm cắt cáp thủy lực TAC CPC-40A

(1 đánh giá)

Mã sản phẩm : CPC-40A

Xuất xứ : TAC/Taiwan

Bảo hành : 12 tháng

Giá sản phẩm :

Chi tiết

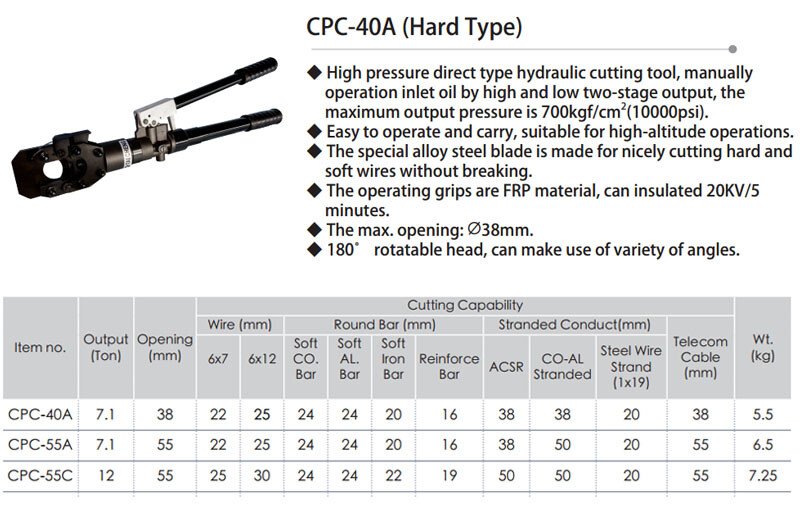

Kìm cắt cáp thủy lực TAC CPC-40A

Hydraulic Cutting Tools

To cut the telephone cables, steel ropes, round bars, aluminum.
Hydraulic separate type of cutting tools: CPC-20B


CPC-20A	CPC-40A	CPC-55A

CPC-85A	CPC-100B	CPC-85B

CPC-20B	CPC-40B	CPC-55B

Characters:
1.It can be operated to cut on the electrical wire pole.
2.CPC-40A FRP insulated bar 20kv/5min.
3.It is specialized in cutting the separate type of steel wires and aluminum wires.
4.CPC-100B,85B.40B.55B.20B matched with pump of CTE-25AS or CP-700.
5.Packing has two: A. Canvas bag, B. Iron case.
6.Razors are manufactured with high carbon alloy steel, which is specialized in cutting steel, aluminum wires HRC 65¢X.
∗The blade of the razor is 45¢X and 5¢X; if cutting ACSR , please use to 5°

Figure for specification
A: direct typeB: separate type

Model	Output (tons)	Weight (kg)	Lenght (mm)	Wire rope			Round bar
Model	Output (tons)	Weight (kg)	Lenght (mm)	6x7 Hemp- core (mm)	6x12 Hemp- core (mm)	6x19 Hemp- core (mm)	Soft Copper Bar (mm)	Soft Alu- minum Bar (mm)	Rein- forcing Bar (mm)	Rein- forcing Bar (mm)
CPC-20A	20	9.3	675	20	20	20	20	25	25	25
CPC-40A	6	6.5	630	12	12	12	12	12	12	12
CPC-55A	7	7.2	610	---	---	---	20	20	16	20
CPC-85A	4	9.2	705	---	---	---	---	---	---	---
CPC-20B	20	16	305	20	20	20	20	25	20	25
CPC-40B	6	4	310	22	25	20	20	20	16	20
CPC-55B	10	6	300	---	---	---	28	28	16	28
CPC-85B	4.5	6.5	456	---	---	---	---	---	---	---
CPC-100B	8.8	13.5	570	---	---	---	---	---	---	---

Model	Wire stands					Round bar
Model	Bare Copper Strands (mm)	Bare Aluminum Strands (mm)	ACSR (mm)	1x7 Guy Steel Wire Strands (mm)	1x19 Guy Steel Wire Strands (mm)	Tele- phone Gable CCP	Soft Aluminum Bar (mm)	Reinforcing Bar (mm)
CPC-20A	32	32	32	32	32	---	---	32
CPC-40A	20	20	38	20	20	---	---	39
CPC-55A	24	50	50	28	20	---	---	50
CPC-85A	28	46	---	---	---	85	85	50
CPC-20B	32	32	35	20	20	---	---	41
CPC-40B	32	32	38	20	20	---	---	41
CPC-55B	50	50	50	15	20	---	---	50
CPC-85B	28	46	---	---	---	85	85	50
CPC-100B	42	46	---	---	---	---	100	70


CC-50B+A	CC-32B+A

Functions:

Figure for specification

Model	Name	Function			Output (Tons)	Weight (kg)
Model	Name	Cable Ø mm	Specification	Iron rope Ø mm	Output (Tons)	Weight (kg)
CC-32B+A	Hydraulic cable cutting tool	D 32	4002	---	12	5
CC-50B+A	Hydraulic cable cutting tool	D 50	6302	---	12	6

1. It can be operated to cut on the electrical wire pole.
2. It is specialized in cutting the separate type of steel wires and aluminum wires.
3. Razors are manufactured with high carbon alloy steel, which is specialized in cutting steel, aluminum wires HRC 65°.
- The blade of the razor is 45° and 5°; if cutting ACSR, please use to 5°
1. CC-32B, CC-50B the opener is 42mmO and 52mmO, easy to cutting operation in the distributed electricity tray.
2. Available to high pressure PE.IV cables, phone wires, for cutting quickly.
3. High carbon Tungsten alloy steel of razor is strong and heat treated HRC-65°.
4. To match with pump CTE-25AS, CP-700 series.
5. CC-32B, CC-50B hydraulic cylinder can be used with CC-104.
- CSC-30B, CSC-52B can cut 9mm of iron.
